Ink Capacities …

… for various fountain pens and converters.

I gathered numerous fountain pens (own ones and those from friends) and measured their ink capacities. I also took a couple of converters – proprietary ones such as for Lamy or Sailor as well as standard international ones (SI). This list cannot be representative since it does not contain any eyedroper pen …

The measurements were performed quite simply: Wothnthe respective pen or converter, I sucked up water from a little container and spilled it into a little bottle with a scale (the little blue thingy in the title picture filled with blue substitute). I spilled out as much as possible (by turning the twisting turning knob of the pens and converters quite often), but of course, a little bit of ink was always left in the feed. Anyway the measurements give you quite precise impression of how much ink can be hold by each fountain pen. Therefore, the measurements are sort of the minimum one can expect (I would guess anyway that the feed can hold max. 0,1ml, depending on its size – but this s only a guess, nothing more).

It is not a surprise that the converters have quite low ink capacities (around 0,6-0,8ml), but it is actually a surprise that the big and girthy pens do not hold enormous ink amounts, either. Eg. the Montblanc Meisterstück 149ers or the Pelikan M1000 – as these two are the flag ship pens of the respective pen brands. In turn, some of the smallest and thinnest pens hold quite much ink, eg. the Montblanc Meisterstück 14 from the sixties asn well as the MB 24. Both hold 1,6ml and 1.5ml, respectively. Also the rather small Pelikan M200/400 hold 1.3ml/1.4 ink which is comparable with the significantly bigger pens M600 and M800 from the same brand (both 1,3ml).

Very low ink capacities are shown in the Heritage Rouge-et-Noir-Series by Montblanc. I had two of them for measurement and both hold not more than 0,6ml of ink … even a Montblanc converter or an unbranded one (standard international which fits into old Montblanc Noblesses or Slim Lines or even into modern Graf von Faber-Castell converter-pens) hold substantially more ink (0,8-0,9ml). That is a bit dissapointing. Similarly behaving the converters from Sailor and Platinum (0,6ml). The Kaweco converter holds least ink of all the converters checked here, but this one has to fit into a very small Kaweco Sport – a very small pen … What do we learn from this? Size doesn’t matter …

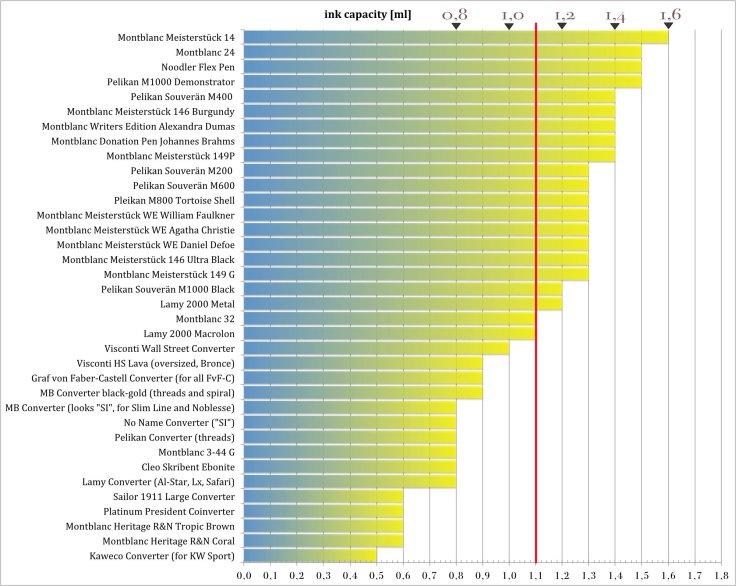

Diagram:

inc_cap_diag



Table:

Pen ink capacity [ml]
Kaweco Converter (for KW Sport) 0,5
Montblanc Heritage R&N Coral 0,6
Montblanc Heritage R&N Tropic Brown 0,6
Platinum President Converter 0,6
Sailor 1911 Large Converter 0,6
Lamy Converter (Al-Star, Lx, Safari) 0,8
Cleo Skribent Ebonite 0,8
Montblanc 3-44 G 0,8
Pelikan Converter (threads) 0,8
No Name Converter (“SI”) 0,8
MB Converter (looks “SI”, for Slim Line and Noblesse) 0,8
MB Converter black-gold (threads and spiral) 0,9
Graf von Faber-Castell Converter (for all FvF-C) 0,9
Visconti HS Lava (oversized, Bronce) 0,9
Visconti Wall Street Converter 1,0
Lamy 2000 Macrolon 1,1
Montblanc 32 1,1
Lamy 2000 Metal 1,2
Pelikan Souverän M1000 Black 1,2
Montblanc Meisterstück 149G 1,3
Montblanc Meisterstück 146 Ultra Black 1,3
Montblanc Meisterstück WE Daniel Defoe 1,3
Montblanc Meisterstück WE Agatha Christie 1,3
Montblanc Meisterstück WE William Faulkner 1,3
Pleikan M800 Tortoise Shell 1,3
Pelikan Souverän M600 1,3
Pelikan Souverän M200 1,3
Montblanc Meisterstück 149P 1,4
Montblanc Donation Pen Johannes Brahms 1,4
Montblanc Writers Edition Alexandra Dumas 1,4
Montblanc Meisterstück 146 Burgundy 1,4
Pelikan Souverän M400 1,4
Pelikan M1000 Demonstrator 1,5
Noodler Flex Pen 1,5
Montblanc 24 1,5
Montblanc Meisterstück 14 1,6
